Modern House

Yawal TM 102 HI

LTB WINDOWS & DOORS

Zrzut ekranu 2025-05-02 131354.png

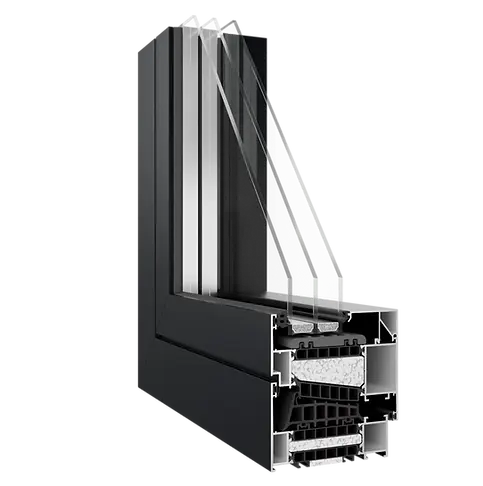

The Yawal TM 102 HI window is an ideal solution for energy-efficient and passive construction, performing excellently both in residential and public buildings. It uses a modern system of profiles by Yawal, which guarantees extremely high thermal insulation, providing comfortable interior conditions with minimum energy consumption. Thanks to the innovative construction of the window sash, the profiles are also characterised by considerable strength, which makes it possible to create large-size constructions. The maximum sash weight reaches an impressive 180 kg and the maximum dimensions reach 1400 mm x 3000 mm, making these windows extremely versatile and flexible in application. In addition, with an RC2 burglary resistance rating, they provide users with a sense of security and meet the highest safety standards. Another important aspect is the excellent air permeability of Class 4 and wind load resistance reaching Class 5, which confirms not only the high quality of the workmanship, but also the effectiveness in maintaining optimal internal conditions in a variety of weather conditions.

Profile Design

  • Excellent energy efficiency level Uf = from 0.45 W/m2K with innovative central seal design.

  • High sound insulation confirmed by tests.

  • Modern snap-in profile design to achieve a single plane on the aluminium line.

  • Reversible glazing profile possible.

  • Constructions with large surfaces are possible.

  • Balcony doors with a low threshold and all-glass corner can be realised.

  • Additional windproofing thanks to a gasket at the junction of the profile glazing strip.

  • Modern doors with excellent thermal insulation can be made.

  • Full range of fittings available on the market: surface-mounted, concealed, under groove type PVC, free form bolt handles, stainless steel handles.


Window Advantages

Colours Yawal TM 102 HI

Zrzut ekranu 2025-05-02 103038.png

PLEASE NOTE: Aluminium windows available from the PETECKI Group can be made in any RAL colour. The full range of available colours, including colours from the non-standard palette, is available from our sales consultants in our showrooms and in the network of Business Partner outlets.
The presented graphic materials are for illustrative purposes only and the actual colours and textures of the products may differ from those shown in the advertising materials.
The presented graphics, including the presentation of colours, cannot constitute grounds for a complaint.
